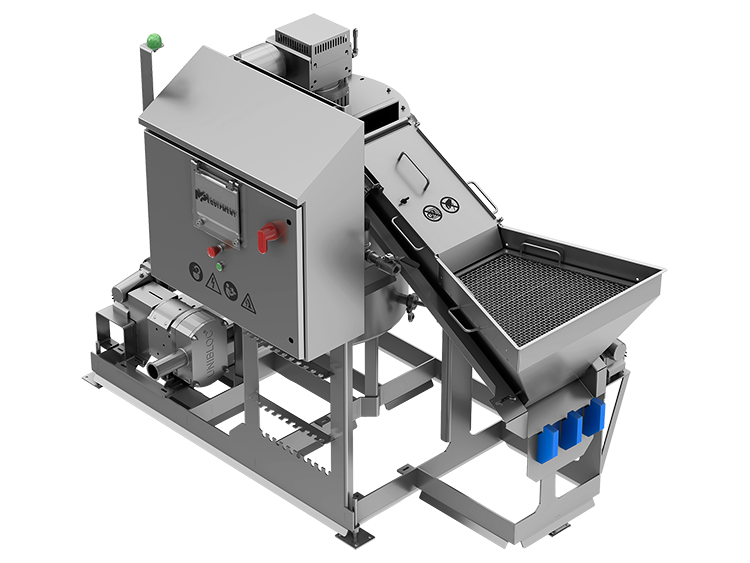

MP415 TCS

The MP415 tempura applicator applies temporal batter to your products with complete coverage resulting in a perfectly coated product with precise pickup and discharged then into the fryer at just the right angle and speed. The optional insulated top reserve tank ensures continuous operation and temperature stability, gravity feeding gently into the top waterfall. Capable of producing up to 660 gallons of tempura per hour or as little as 25 gallon per hour. The TCS can mix and pump a batch of tempura in 5 minutes or less.

Contact MP and talk to a Product Expert for additional information.

SOLUTIONS

  CLICK ON ICON TO ENLARGE IMAGE

Features & Benefits

MP415 TCS

Models:

  • MP415-50: 50 Gallon

  • MP415-70: 70 Gallon​

Machine Features:

  • An ALL electric automated tempura batch mixing system with very precise mix accuracy and temperature control

  • Standards & guidelines to Food Safety & USDA requirements

  • Construction is all stainless steel frame and assembled using US standard food safety components

  • Capable of producing up to 660 gallons of tempura per hour or as little as 25 gallon per hour. The TCS can mix and pump a batch of tempura in 5 minutes or less.

  • High efficiency 50 or 70 gallon insulated tanks

  • Adjustable batch size that is 100% programmable

  • Electrical control characteristics:

    • Allen Bradley PLC and color touchscreen

    • Allen Bradley VFD’s on feed pump as well as mixer

    • Electronic water meter & plc meters water automatically in tenths of a gallon

    • Automated startup sequence for added consistency

    • Stainless Steel sloped top NEMA 4X enclosures

    • Temperature control and monitoring in mix tank

    • Ethernet networking capability

    • 100% automated control of batter mixing

  • All stainless steel Unibloc PD feed pump with variable speed

  • All stainless steel direct driven mixer with precise speed control of a VFD

  • All stainless steel water and sanitary piping

  • All stainless steel jacketed & insulated mix tank with jackets on side & bottom of tank (180 psi ASME Certified & Stamped)

  • Ergonomically designed low profile hopper with 150lb capacity

  • Self-diagnostics for alarms, temperatures and motor O.L.

  • Perforated parts basket for all sanitary and pump parts during disassembly

SOLUTIONS

MP415 TCS

FEATURES

Includes Precision Parts

MP Parts are Inspected in-house to ensure they meet exacting production tolerances and specifications.”

Built in the USA

MP Equipment is proudly designed and manufactured by skilled Engineers and Technicians here in Gainesville, Georgia

Solid Value

Customers return to MP time and time again thanks to our rugged equipment, built to last, and our quick responding service that keeps them up and running at top efficiency!

Protein Innovation Center

Every piece of equipment is thoroughly tested before shipping. Come visit one of our Innovation Centers and test your product. Located in Schaumburg, IL & Gainesville, GA.
